Single-sided CNC fire hydrant boring lathe
The single-sided CNC fire hydrant boring lathe is controlled by a CNC system, which is simple to operate and process, improves processing efficiency, saves labor and reduces costs.
Main features
1. High uniformity of processing dimensions: The single-sided CNC fire hydrant boring lathe adopts a CNC control system, which does not require repeated tool setting, thereby improving the uniformity of dimensions.
2. High processing efficiency: During the processing process, the CNC machine tool adopts the method of simultaneous operation of the power head to complete the processing of the end face flange inner hole and thread of the entire workpiece at the same time. The time required is 1-3 minutes.
3. Reduce labor: One person can operate two lathes at the same time or one lathe and a drilling machine at the same time.
4. Easy to operate: The machine tool adopts a CNC system, and those with CNC operation experience can learn it at once.
Main components
The single-sided CNC fire hydrant boring lathe adopts a mobile workbench, which can process two water outlets of underground fire hydrants on the same straight line.
Application
Single-sided CNC fire hydrant boring lathe is suitable for fire hydrants: suitable for processing the end face, outer circle, plane, inner hole and thread of underground fire hydrants and pipe fittings.
Specifitions
| Project | Machine tool specifications | YC l C200HT | YC l C300HT |
| Technical specifications | Technical Specifications Maximum Turning Diameter (mm) | φ340 | φ540 |
| X-axis travel (mm) | 130 | 150 |
| Z-axis travel (mm) | 280 | 280 |
| Processing accuracy | Ovality (mm) | ≤0.03 | ≤0.05 |
| Main shaft drive | Transmission mode (gear shifting) | 4-speed transmission | 4-speed transmission |
| Spindle speed range (r/min) | 72-256 | 72-256 |
| Spindle motor model | Y112M-4 4KW | Y132S—4 5.5KW |
| CNC control system (optional) | Standard Configuration | Huaxing 96TA |
| Optional Configuration | GSK928TCA-L GSK980TB2 |
| Drive Motor | Stepper Motor 24N.m | Stepper Motor 36N.m |
| Machine tool appearance | Full protection | Machine tool dimensions (length X width X height Mm) | 1600X700X1570 | 2350X750X1570 |
| Simple protection | Machine tool dimensions (length X width X height Mm) | 1550X660X1570 | 2310X700X1570 |
| Machine weight(kg) | 1800 | 2800 |

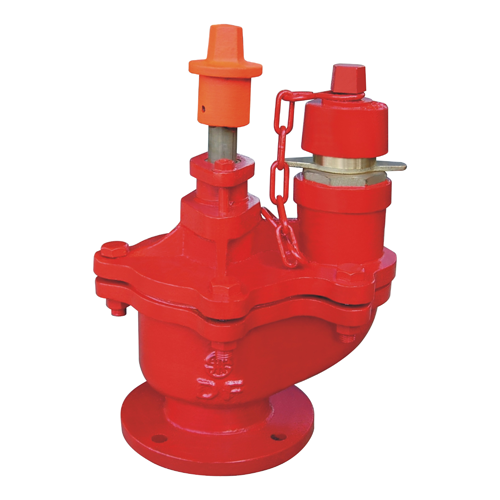

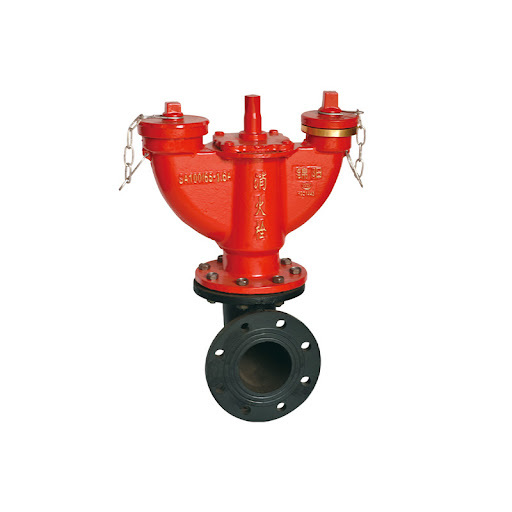

Processed products
